Final Installation - S48-100LFP STACK-LV

1. If it is not already in place, move the unit to its final location against a wall or other secure structure. Refer to PRECONDITIONS FOR INSTALLATION

    a. Release the levelling feet as necessary.

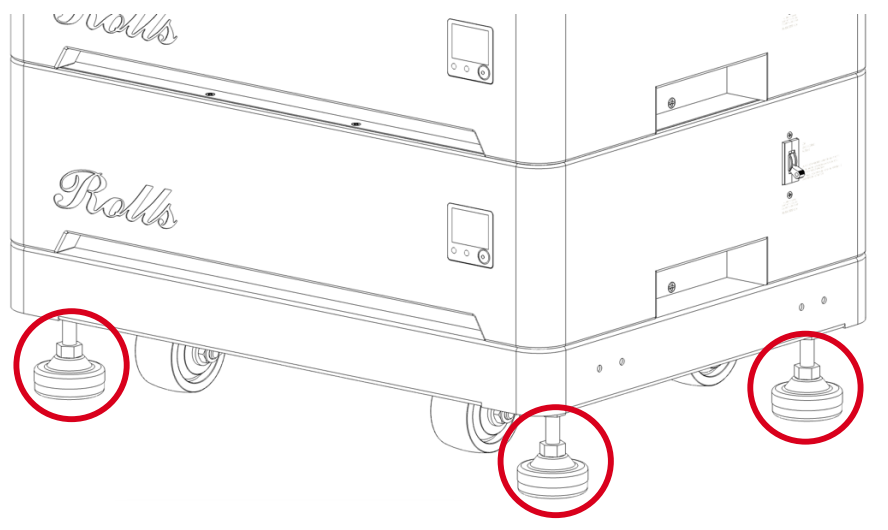

2. Lower the levelling feel so that they bear the weight of the unit.

    a. Ensure that the ESS is level by adjusting the feet appropriately.

    b. Lock the levelling feet in place by tightening the locking nut against the nut on the Base.

3. Attach the Anti-tilt Bracket.

To secure the ESS, the Anti-tilt Bracket should be fastened to a solid structure such as brick/concrete block or other.

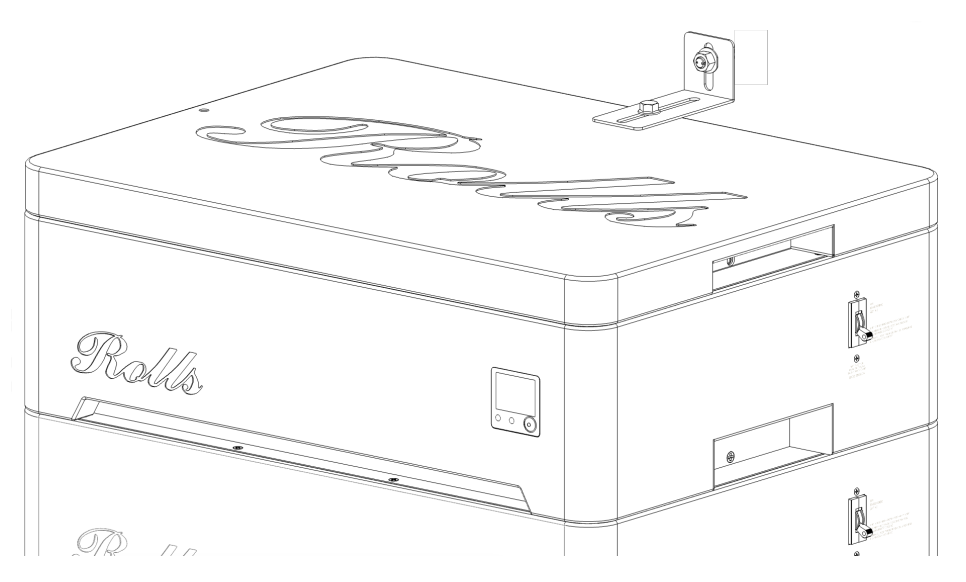

    a. Fasten the Anti-tilt Bracket loosely to the top of the ESS in the rear or side position (see illustration below) using the supplied M8x12mm Bracket Mounting Screw.

    b. Position the Anti-tilt Bracket against the wall.

    c. Drill a hole in the wall to install the supplied M8x100mm Expansion Bolt, or secure to the Anti-tilt Bracket to the wall with other hardware of your choosing.

    d. Secure the Anti-tilt Bracket to the wall by tightening the M8x100mm Expansion Bolt.

    e. Tighten the M8x12mm Bracket Mounting Screw to the top of the ESS to secure.

Note: Alternative hardware may be used to secure the Anti-tilt Bracket to a wall. Additionally, two M8 threaded inserts are located on each side of the Base to allow fastening the ESS to the floor. (Hardware not included)

4. Last, ensure all module side-mounted breakers are in the OFF position (down) as shown in images before continuing with any electrical work.

5. Finally, reinstall the rear panels onto the rear of each unit as they arrived.
